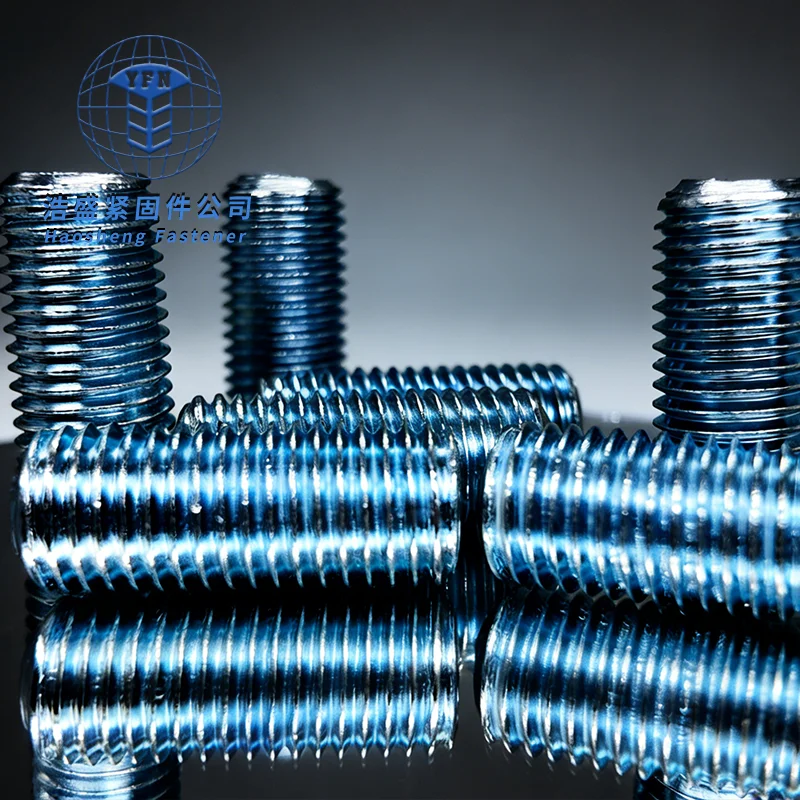

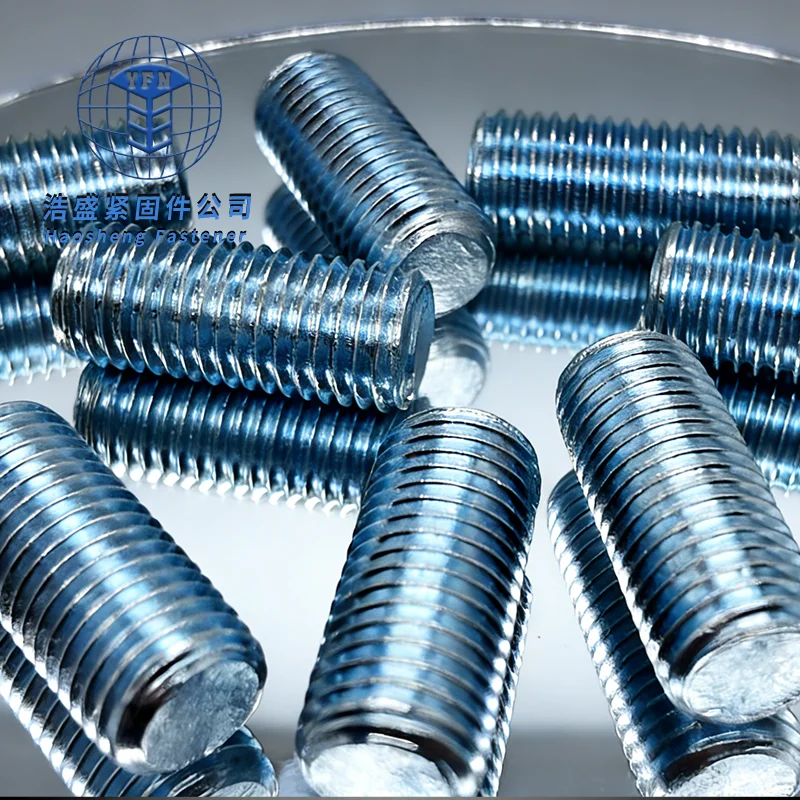

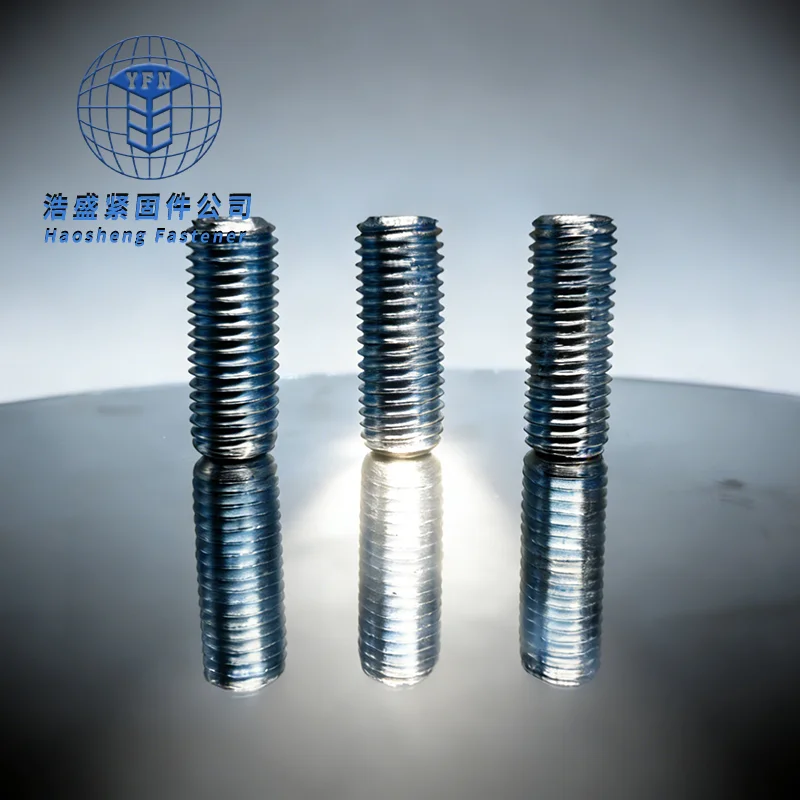

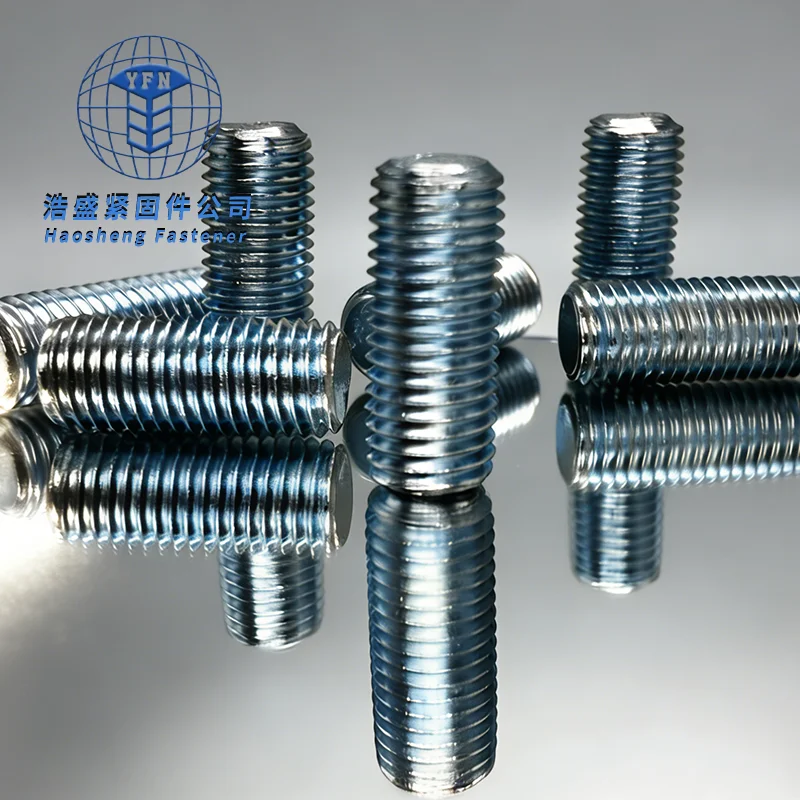

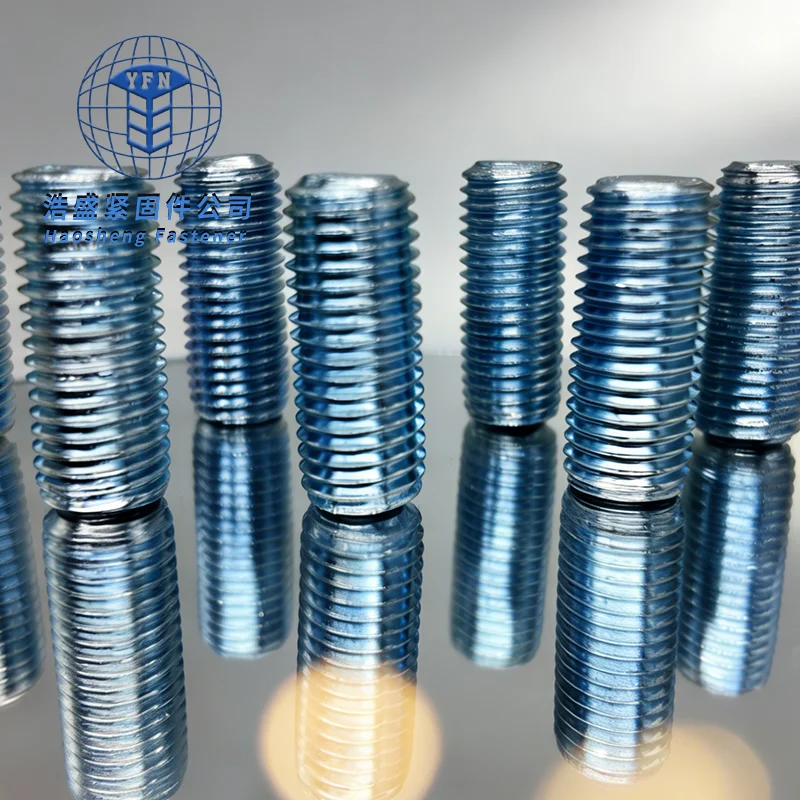

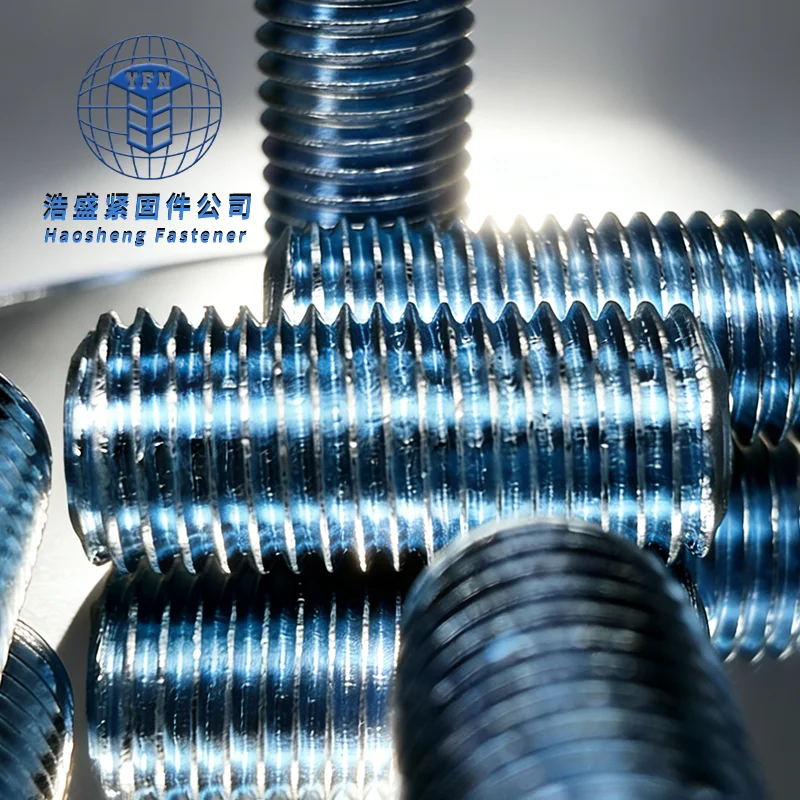

Our DIN 976 Fully Threaded Stud Bolts (also known as threaded rods or all-thread studs) feature continuous threads along the entire length, providing maximum adjustability and versatility. Manufactured in strict compliance with DIN 976 standards, these rods allow nuts to be screwed on from either end or at any point along the rod, making them essential components for construction, engineering, and industrial applications
Key Features & Benefits
Continuous Full Threading: 100% threaded length allows infinite nut positioning and cut-to-length convenience on-site with standard tools
High Strength Options: Available in carbon steel (4.8, 8.8, 10.9, 12.9) and stainless steel (A2-70/A4-80)
Corrosion Resistant Finishes: Zinc plated, hot-dip galvanized (HDG), plain, or stainless steel for various environments
DIN 976 Compliance: Guarantees dimensional accuracy, consistent thread quality, and global interchangeability
Right-Hand Thread: Standard metric thread direction compatible with all standard nuts and washers
Product Details
Name | Thread Stud Bolt | Materials | Carbon Steel/Stainless Steel |
Standards | DIN976 | Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
Size | M2-M72 | Surface finish | ZP/YZP/Black/Teflon/HDG/Dacromet |
Length | 5-3000 | Samples | Available |

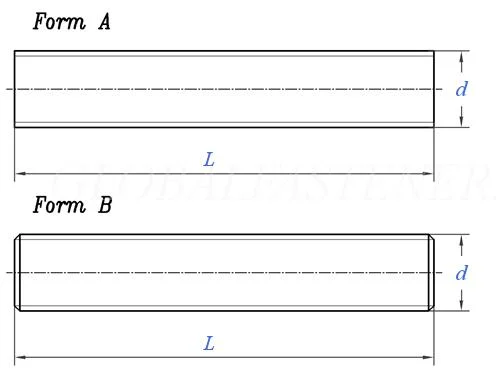

Product Parameters

| Thread Size | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | ||||
| d | |||||||||||||||||||
| P | pitch | Coarse Thread Pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | ||
| Fine Thread Pitch, 1 | / | / | / | / | / | / | / | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| Fine Thread Pitch, 2 | / | / | / | / | / | / | / | - | 1 | 1.5 | / | / | / | / | / | ||||
| Thread Size | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | (M68) | M72 | ||||
| d | |||||||||||||||||||
| P | pitch | Coarse Thread Pitch | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 | / | ||
| Fine Thread Pitch, 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 6 | ||||
| Fine Thread Pitch, 2 | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | ||||
Intended Applications
Construction: Suspended ceilings, pipe hangers, structural supports
Industrial: Equipment mounting, machinery assembly, conveyor systems
Automotive: Engine components, chassis repairs, custom fabrications
DIY & Fabrication: Anchor bolts, clamps, hangers, U-bolts, custom-length fasteners
Maintenance: Thread repairs, custom stud fabrication, temporary bracing
Installation Guidelines
Cutting: Use hacksaw or angle grinder; always deburr cut ends
Thread Engagement: Ensure minimum 1.5 × diameter engagement for load-bearing applications
Washer Selection: Use flat washers of at least 140HV for grade 4.8, 200HV for grade 8.8
Stainless Steel: Apply anti-seize lubricant to prevent thread galling
Why Choose Our DIN 976 Stud Bolts?
Standards Compliant: Manufactured to strict DIN 976 specifications
Full Traceability: Material certifications (EN 10204 3.1) available upon request
Comprehensive Range: All diameters, lengths, materials, and finishes in stock
Cut-to-Length Service: Available for ready-to-install requirements
Competitive Pricing: Direct sourcing with reliable global supply
