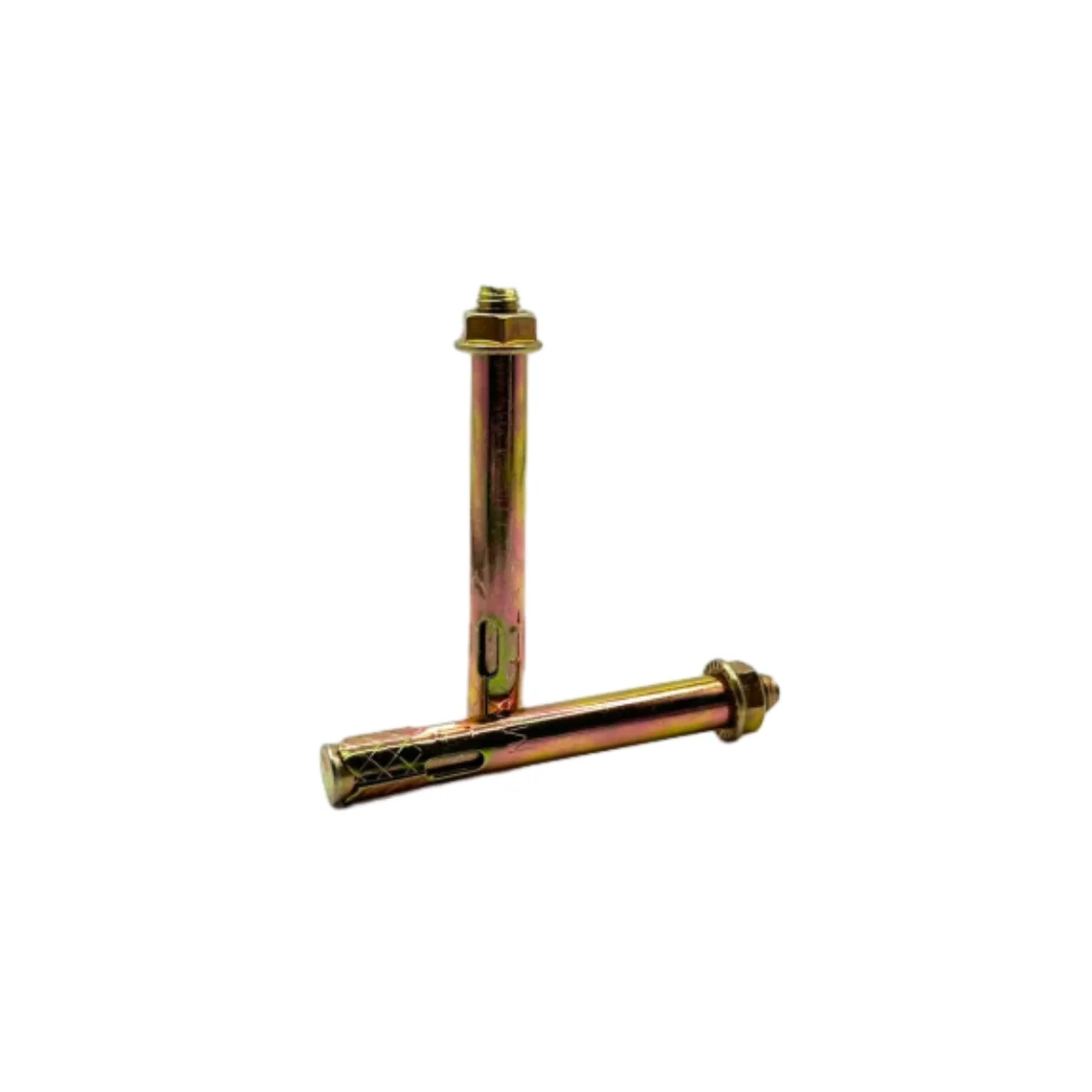

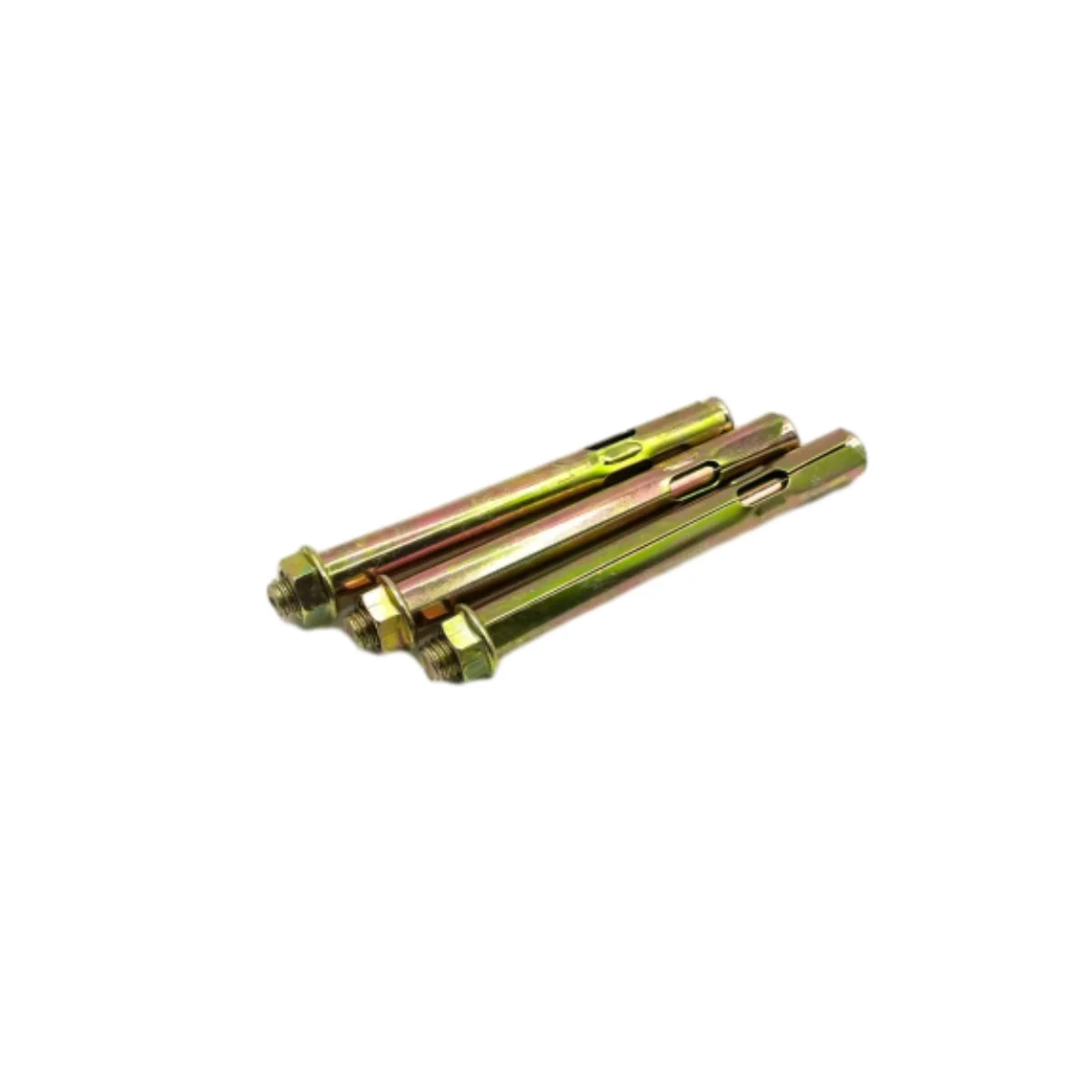

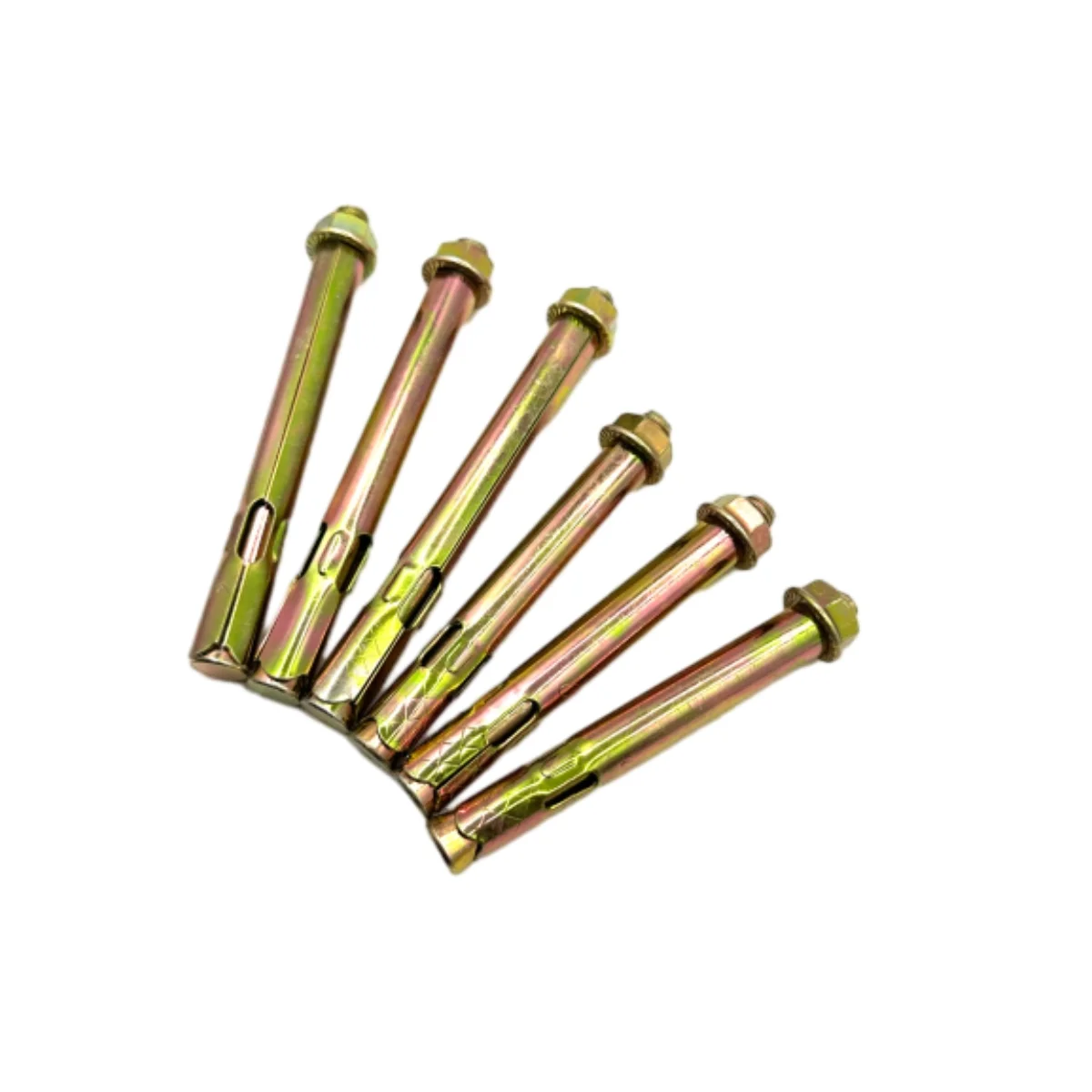

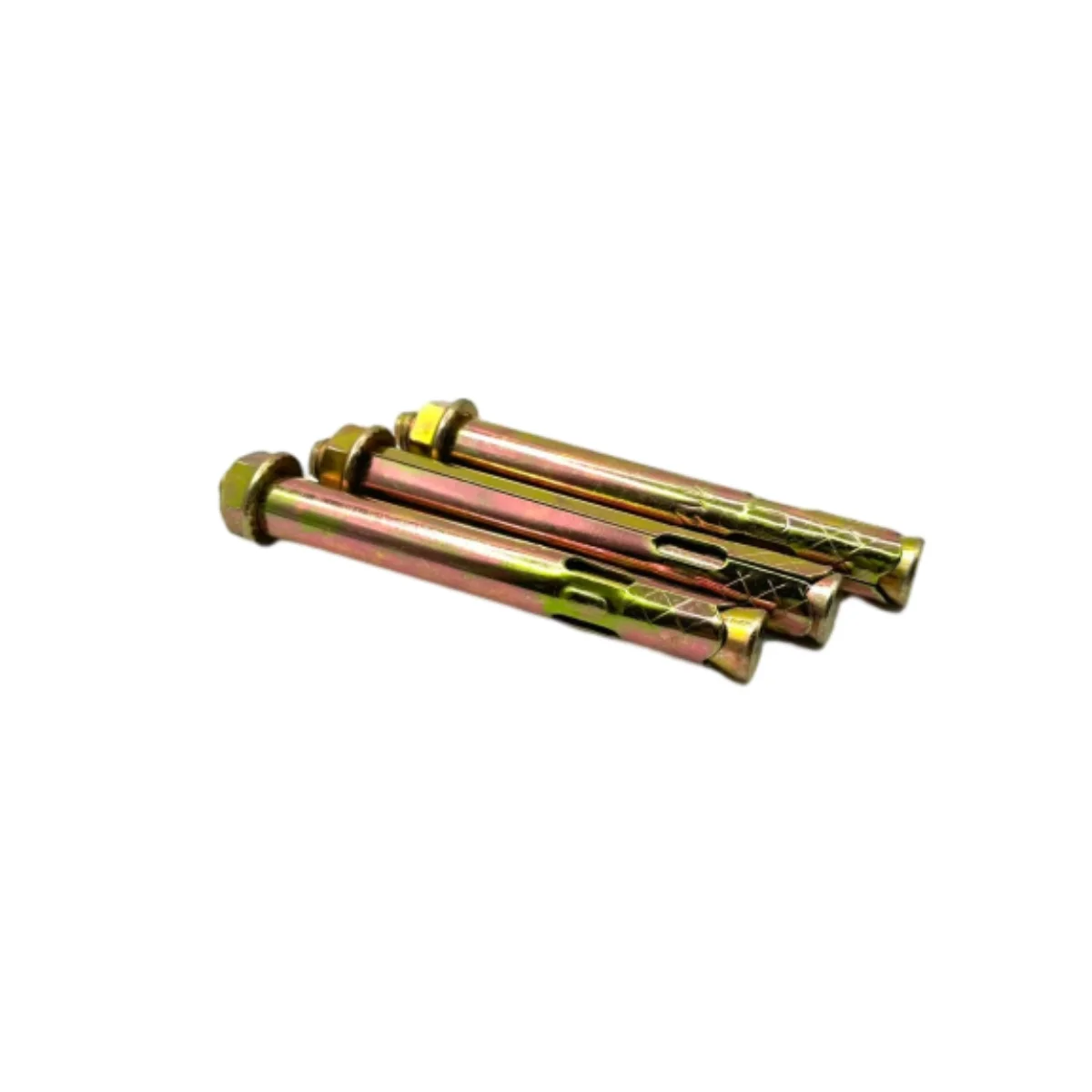

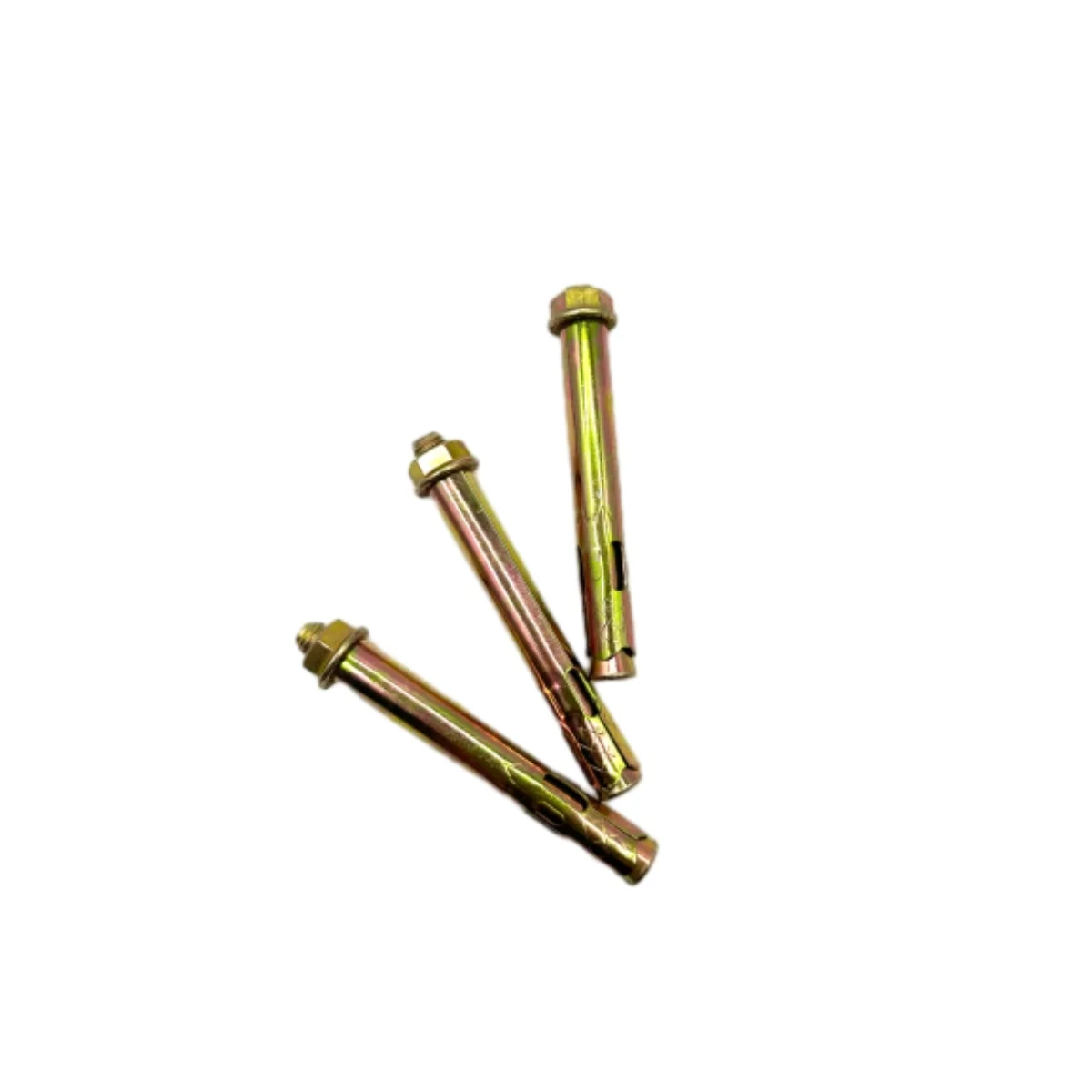

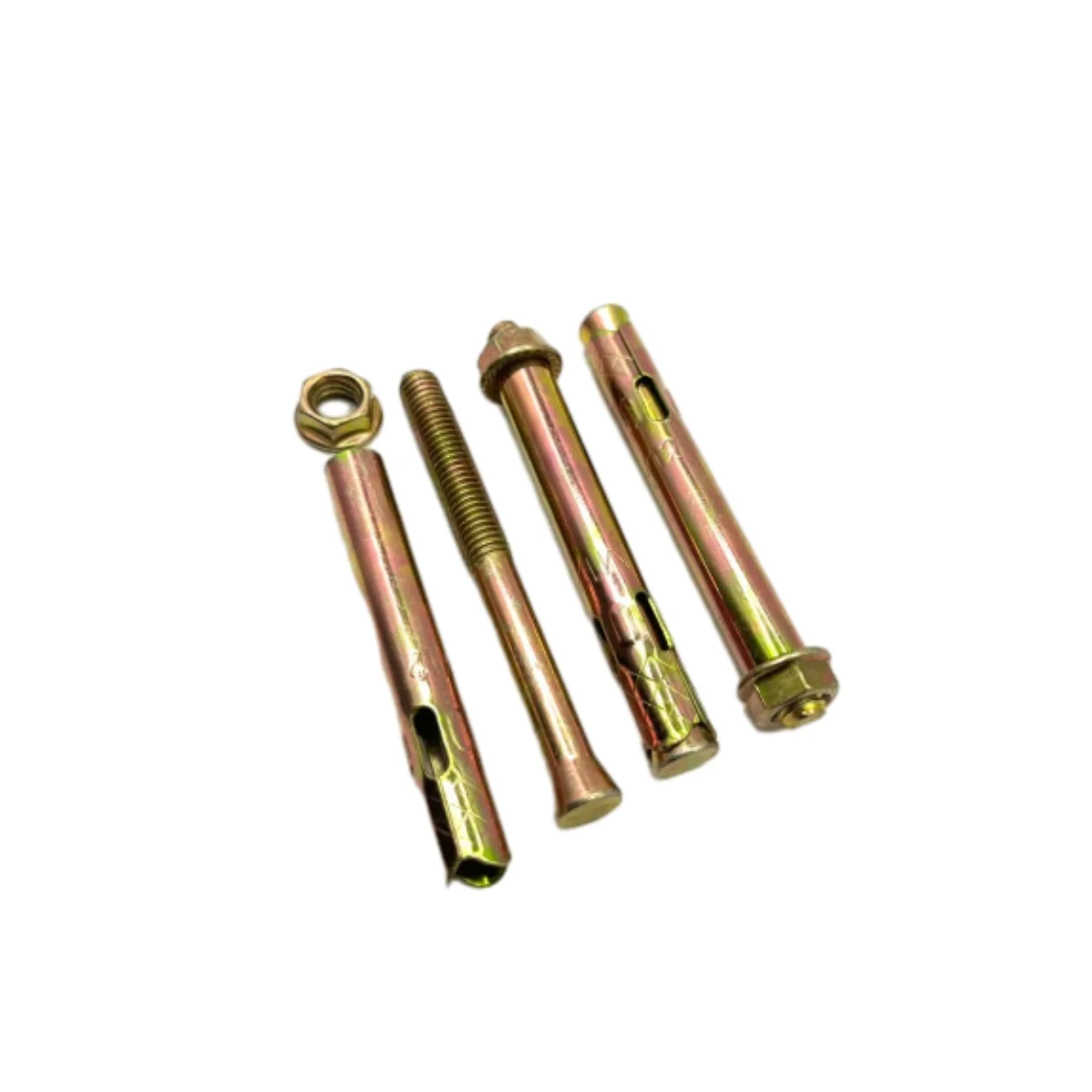

Sleeve Anchor With Flange Hex Nut

Our Flange Sleeve Anchor (also known as flange nut sleeve anchor) is a high-performance expansion anchor designed for permanent fastening into concrete, solid brick, and masonry. Featuring an integrated hex flange nut, this anchor provides superior load distribution and a finished appearance in one complete assembly

  • Description

Key Features & Benefits


Integrated Flange Nut: Built-in hex flange nut distributes clamping force over a wider area—eliminates the need for separate washers

Positive Expansion: Sleeve expands uniformly against the base material, creating a secure, vibration-resistant hold

Removable Design: Unlike wedge anchors, sleeve anchors can be removed if needed, leaving the substrate intact

Corrosion Resistant: Available in zinc plated (blue/white/yellow), hot-dip galvanized, and stainless steel finishes

Ready-to-Use: No special tools required—drill, insert, and tighten



Product Details



Name

Flange Sleeve Anchor

Materials

Carbon Steel

Standards

/

Strength level

4.8

Size

M6-M20

Surface finish

Zinc Plated/ HDG

Length

50-200

Samples

Available


Intended Applications

Structural Steel: Securing columns, beams, and building frames to concrete foundations

Heavy Machinery: Mounting industrial equipment, presses, and conveyors

Racking & Shelving: Installing warehouse pallet racks and heavy shelving systems

Safety Barriers: Handrails, guardrails, and bollards

Outdoor Structures: Signage, light poles, and fencing

HVAC & Utilities: Mounting large equipment and support frames



Installation Guide (Simplified)

1. Select anchor diameter based on load requirements

2. Drill hole diameter equal to anchor diameter (e.g., M10 anchor requires 10mm hole)

3. Drill depth = anchor length + 5mm minimum for debris

4. Clean hole thoroughly

5. Insert anchor through fixture or directly into hole

6. Tighten flange nut with wrench until sleeve expands and fixture is secure

Why Choose Our Flange Sleeve Anchors?


Proven Reliability: Every batch is manufactured under strict quality controls to ensure consistent performance and dimensional accuracy.

Technical Support: Our engineering support team is available to assist with load calculations, embedment specifications, and code-related inquiries.

Full-Size Inventory: We stock a comprehensive range of diameters, lengths, and finishes for immediate shipment.

Bulk & Project Pricing: Competitive pricing is available for contractors and large-scale projects.
